TECH
TIPS:
ELECTRIC FAN
All Hot
Rod Air
electric fans should be mounded using metal brackets that attach
to either the radiator tanks or radiator.
It is not recommended to use nylon tabs as these tabs can cause
damage to the tubes over time due to engine vibration. When using
Hot Rod Air's line of reversible electric fans, the fan blades
and the polarity of the motor must both be changed to convert
fans from puller
to pushers
or vice versa.
Whether using a single fan or a dual fan setup, a combined airflow
rating of at least 2500 CFM must be achieved to cool an engine.
A puller fan mounted on the engine side of the radiator is recommended
as the optimal electric fan setup. Although pusher fans on the
grille side of the radiator can provide airflow, they can also
restrict airflow created at highway speeds. The combination of
a pusher fan on the grille side of the radiator and a puller fan
on the engine side is not recommended as the two fans will "fight"
one another causing less than optimal airflow.
|
To
View Our Line Of Walker Radiators
Click Here
To
View Our Line Of
U.S. Radiators
Click Here
|
ELECTRIC COOLING FANS / SHROUDS
|
HEIGHT
|
WIDTH
|
DEPTH
|
CFM
|
PART
NUMBER
|
YOUR
COST
|
|
17
3/8"
|
20
5/8"
|
4
1/2"
|
2700
|
03-0040
|
$209.00
|
|
17
3/8"
|
24
1/2"
|
4
1/2"
|
2700
|
03-0050
|
$209.00
|
|
18"
|
21"
|
4
1/2"
|
2700
|
03-0070
|
$209.00
|
HIGH PERFORMANCE REVERSIBLE ELECTRIC
FANS
|
|
DESCRIPTION
|
DIAMETER
|
DEPTH
|
CFM
|
PART
NUMBER
|
YOUR
COST
|
|
10"
REVERSIBLE FAN "S" BLADE
|
10"
|
2.62"
|
1438
|
03-3010
|
$75.00
|
|
12"
REVERSIBLE FAN "S" BLADE
|
12"
|
3.22"
|
1771
|
03-3012
|
$80.00
|
|
14"
REVERSIBLE FAN "S" BLADE
|
14"
|
3.25"
|
1980
|
03-3014
|
$85.00
|
|
16"
REVERSIBLE FAN "S" BLADE
|
16"
|
4.17"
|
2416
|
03-3016
|
$90.00
|
|
16"
REV. 225 WATT FAN
"S" BLADE
|
16"
|
4.41"
|
2700
|
03-3216
|
$109.00
|
|
DUAL
11" REVERSIBLE FAN
|
11"
|
3.22"
|
2060
|
03-0011
|
$165.00
|
|
DUAL
13" REVERSIBLE FAN
|
13"
|
3.35"
|
2700
|
03-0013
|
$185.00
|
Reversible
Fans come with 10 position metal mounting brackets
|

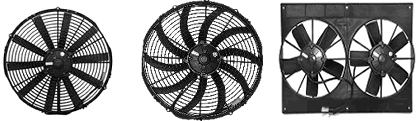

SPAL
HIGH PERFORMANCE ELECTRIC FANS
|
|
STRAIGHT
|
"S"
BLADE |
DUAL 11" W/SHROUD |
|
DESCRIPTION
|
DIAMETER
|
DEPTH
|
CFM
|
PART
NUMBER
|
YOUR
COST
|
|
10"
PULLER H.P.
|
10"
|
3.7"
|
1070
|
03-0182
|
$149.95
|
|
10"
PUSHER H.P.
|
10"
|
3.7"
|
1070
|
03-0181
|
$149.95
|
|
DUAL
11"PULLER W/ SHROUD
|
11"
|
4.25
|
2780
|
03-0846
|
$279.95
|
|
11"
PULLER H.P.
|
11"
|
3.7"
|
1390
|
03-0178
|
$149.95
|
|
11"PUSHER
H.P.
|
11"
|
3.7"
|
1390
|
03-0177
|
$149.95
|
|
11"
PULLER M.P.
|
11"
|
2.48"
|
970
|
03-1500
|
$99.95
|
|
11"PUSHER
M.P.
|
11"
|
2.48"
|
970
|
03-1502
|
$99.95
|
|
12"PUSHER
H.P.
|
12"
|
3.7"
|
1630
|
03-0176
|
$145.00
|
|
12"PUSHER
H.P.
|
12"
|
3.7"
|
1630
|
03-0175
|
$145.00
|
|
12"PULLER
H.P. "S" BLADE
|
12"
|
3.39"
|
1360
|
03-9439
|
$149.95
|
|
12"PUSHER
H.P. "S" BLADE
|
12"
|
3.39"
|
1360
|
03-9822
|
$149.95
|
|
12"
PULLER M.P.
|
12"
|
2.48"
|
1230
|
13-1504
|
$99.95
|
|
12"
PUSHER M.P.
|
12"
|
2.48"
|
1230
|
03-1505
|
$99.95
|
|
13"
PULLER H.P. "S" BLADE
|
13"
|
3.39"
|
1710
|
03-9847
|
$149.95
|
|
13"
PUSHER H.P. "S" BLADE
|
13"
|
3.39"
|
1710
|
03-9851
|
$149.95
|
|
13"
PULLER M.P.
|
13"
|
2.48"
|
1250
|
03-1507
|
$99.95
|
|
13"
PUSHER M.P.
|
13"
|
2.48"
|
1250
|
03-1508
|
$99.95
|
|
14"
PULLER H.P.
|
14"
|
3.39"
|
1720
|
03-0249
|
$149.95
|
|
14"
PUSHER H.P.
|
14"
|
3.39"
|
1720
|
03-0248
|
$149.95
|
|
14"
PULLER H.P. "S" BLADE
|
14"
|
3.39"
|
1720
|
03-9119
|
$149.95
|
|
14"
PUSHER H.P. "S" BLADE
|
14"
|
3.39"
|
1720
|
03-9120
|
$149.95
|
|
14"
PULLER M.P.
|
14"
|
2.48"
|
1280
|
03-1509
|
$99.95
|
|
14"
PUSHER M.P.
|
14"
|
2.48"
|
1280
|
03-1510
|
$99.95
|
|
16"
PULLER H.P.
|
16"
|
3.39"
|
2360
|
03-0231
|
$149.95
|
|
16"
PUSHER H.P.
|
16"
|
3.39"
|
2360
|
03-0232
|
$149.95
|
|
16"
PULLER H.P. "S" BLADE
|
16"
|
3.39"
|
2070
|
03-9825
|
$149.95
|
|
16"
PUSHER H.P. "S" BLADE
|
16"
|
3.39"
|
2070
|
03-9823
|
$149.95
|
|
SPAL
MOUNTING BRACKET EA.
|
|
|
|
99-0001
|
$5.00
|
|
