Dimensions for Chevrolet Short & Long Water Pumps

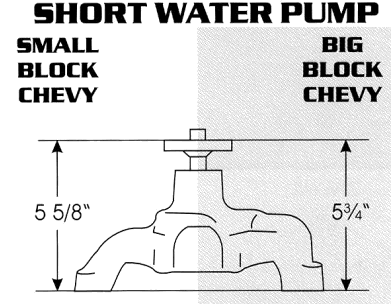

The Short Water Pump Dimension for the Small Block
is 5 5/8" From the Pump Hub To Base of the Water Pump.
The Short Water Pump Dimension for the Big Block
is 5 3/4" From The Pump Hub To the Base of the Water Pump.

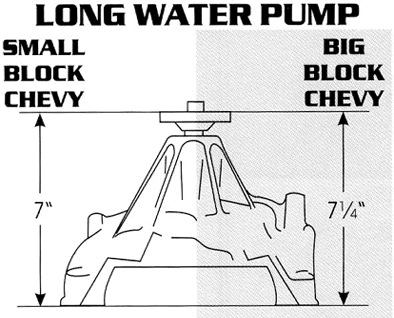

The Long Water Pump Dimension for the Small Block
is 7" From the Pump Hub To Base of the Water Pump.
The Long Water Pump Dimension for the Big Block
is 7 1/4" From The Pump Hub To the Base of the Water Pump.

The Compressor, Alternator and Power Steering Brackets as well as pulleys offered for Chevrolet V8's are specific as to the water pump used on the motor.
Above are the dimensions for long and short water pumps for both
Small Blocks and Big Blocks Chevrolet Motors.
